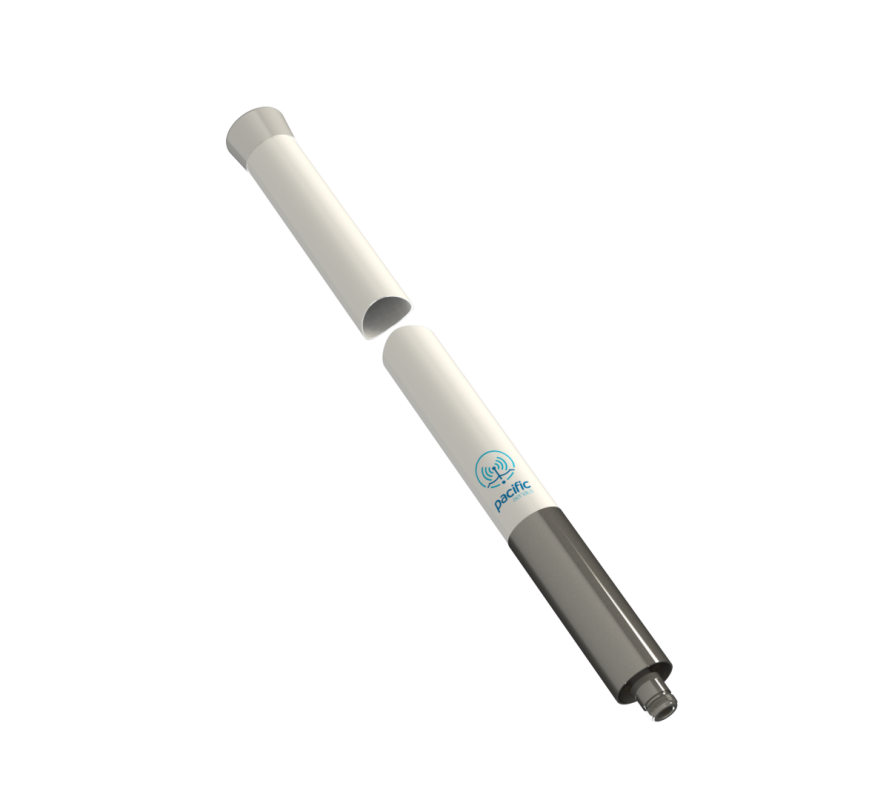

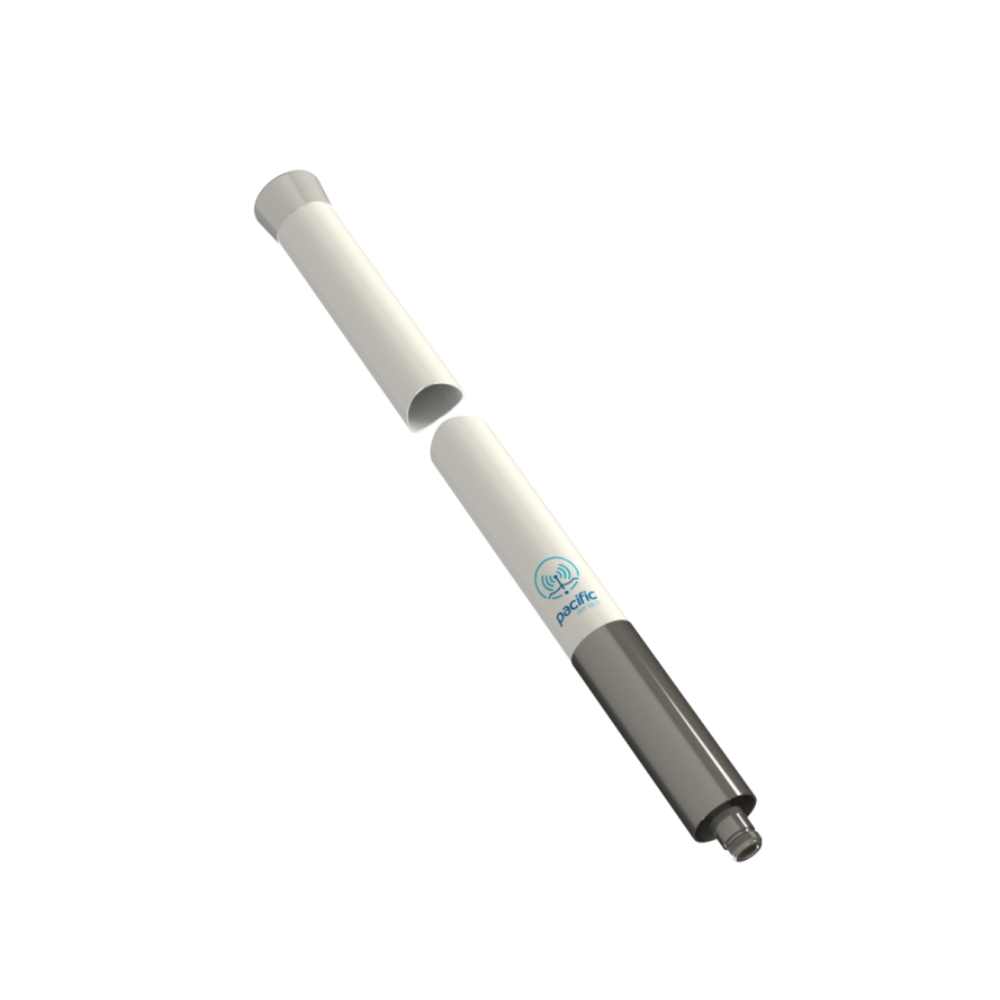

VHF DeepSea Ultraglass Antennas
DeepSea antennas are the first choice for those who earn their living on the water. Constructed in an industrial grade UltraGlass with stainless steel sleeve and recessed N-Type socket. Half wave design, this is the standard antenna for workboat installations. Use P3253 U-bolts for mounting. Available in either 1.5m or 2.5m length.
Description
DeepSea antennas are the first choice for those who earn their living on the water. Constructed in an industrial grade UltraGlass with stainless steel sleeve and recessed N-Type socket.
Half wave design, this is the standard antenna for workboat installations. Use P3253 U-bolts for mounting.
Available in either 1.5m or 2.5m length.
| Frequency | VHF 156-162 MHz |
| Radome | Ultraglass |
| Ferrule | Stainless Steel |
| Antenna Type | Half Wave |
| Gain | 3dBi |
| "Marine Gain" | 6dB |
| Typical VSWR at 156.8 MHz | 1.2:1 |
| DC Meter Reading | Open Circuit |
Additional
| Options | 1.5m, 2.5m Colinear |
|---|
