Index Marine Waterproof Junction Boxes IP66

Boxes are supplied either as blank boxes for you to customise according to your requirements or are supplied pre-fitted with varying combinations of cable glands.

Description

The WB range of waterproof junction boxes will ensure that electrical connections are kept dry.
Boxes are supplied either as blank boxes for you to customise according to your requirements or are supplied pre-fitted with varying combinations of cable glands.
Supplied with lid and fixing screws which do not interfere with the waterproof integrity of the box.

07-A5-WB1 - 94 x 65 x 57mm

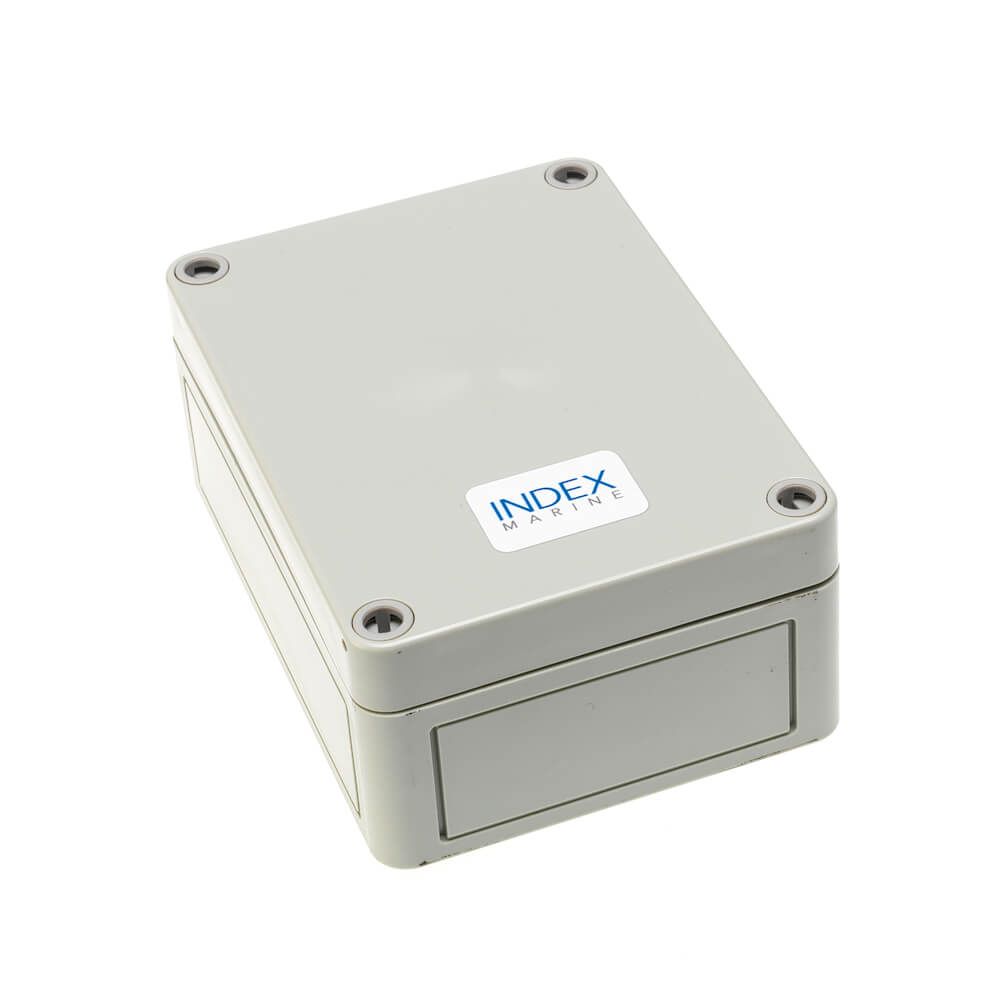

07-A5-WB2 - 130 x 94 x 57mm
07-A5-WB3 - 110 x 110 x 66mm

07-A5-WB4 - 65 x 65 x 57mm

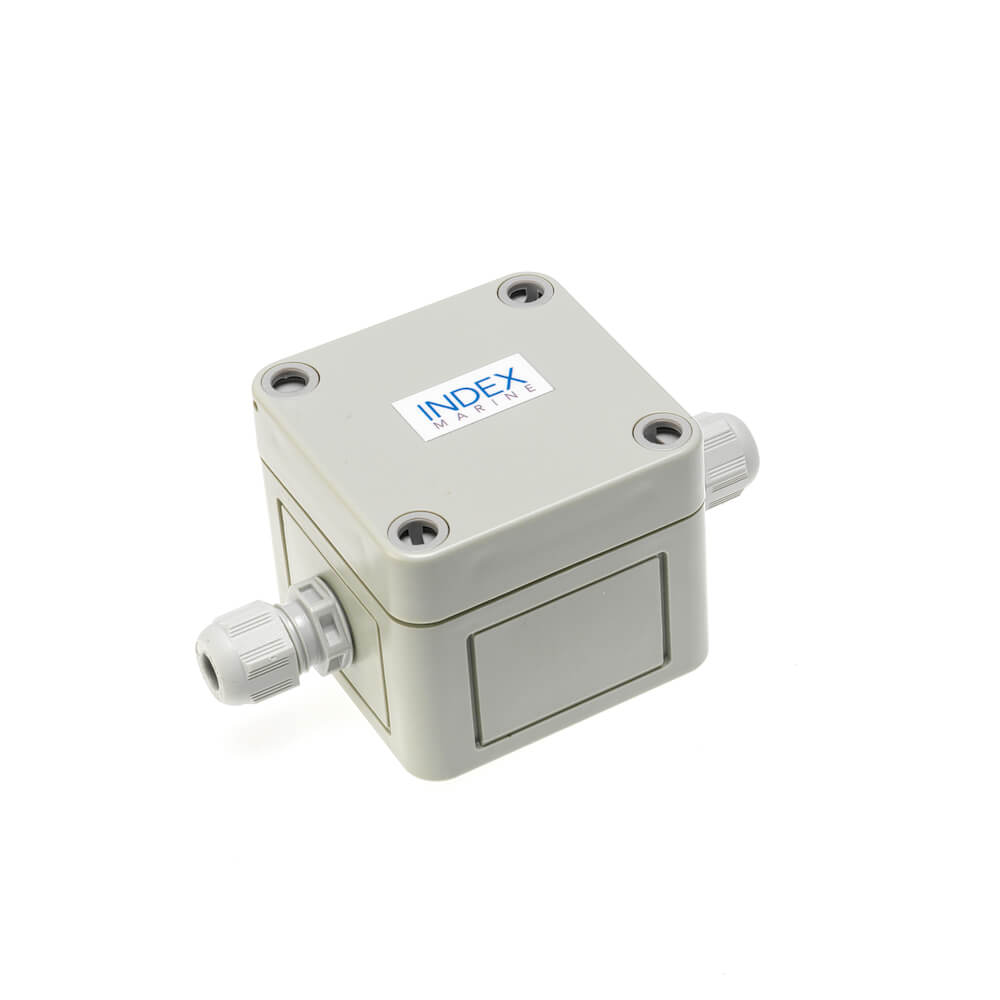

07-A5-WB4/1 - 65 x 65 x 57mm - x 2 CG1 M12 Cable Glands
07-A5-WB4/2 - 65 x 65 x 57mm - x 2 CG2 M20 Cable Glands

07-A5-WB5 - 94 x 110 x 57mm

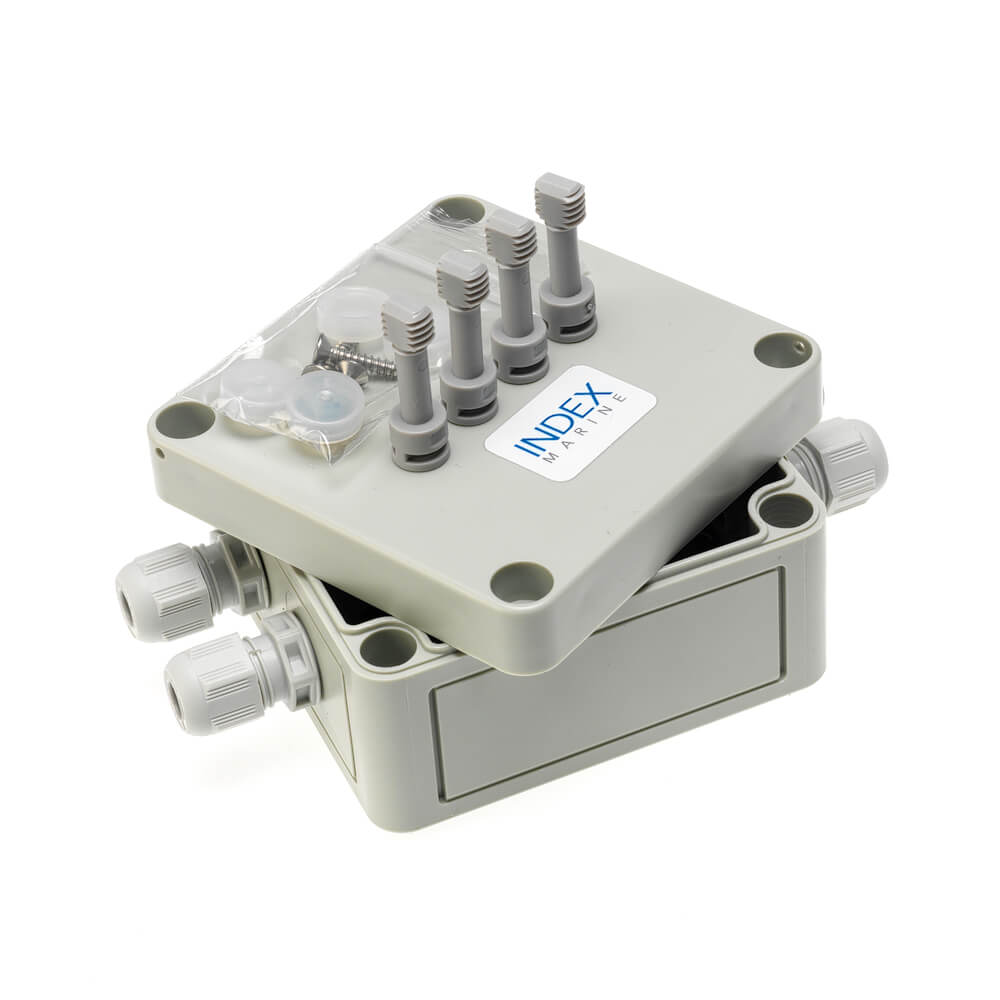

07-A5-WB5/1 - 94 x 110 x 57mm - x 4 CG1 M12 Cable Glands
07-A5-WB5/2 - 94 x 110 x 57mm - x 4 CG2 M20 Cable Glands

07-A5-WB6 - 130 x 130 x 75mm

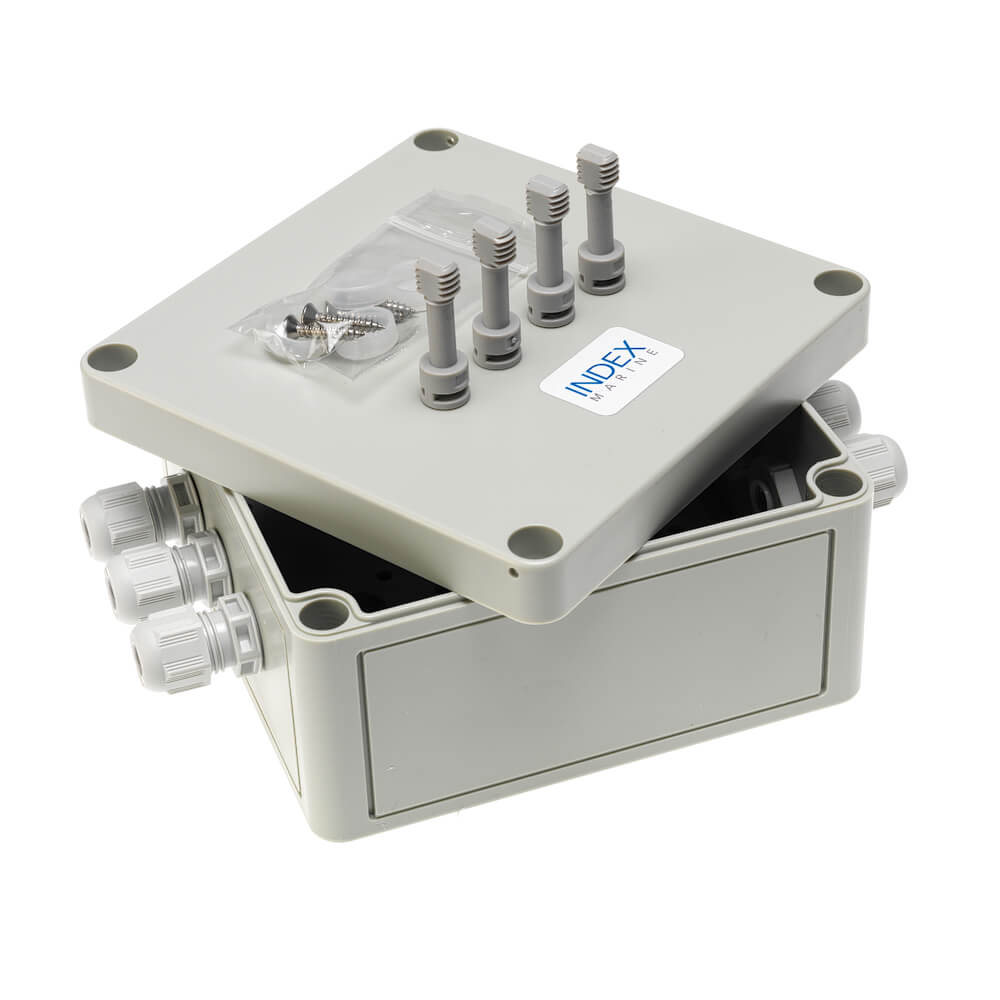

07-A5-WB6/1 - 130 x 130 x 75mm - x 6 CG1 M12 Cable Glands
07-A5-WB6/2 - 130 x 130 x 75mm - x 6 CG2 M20 Cable Glands

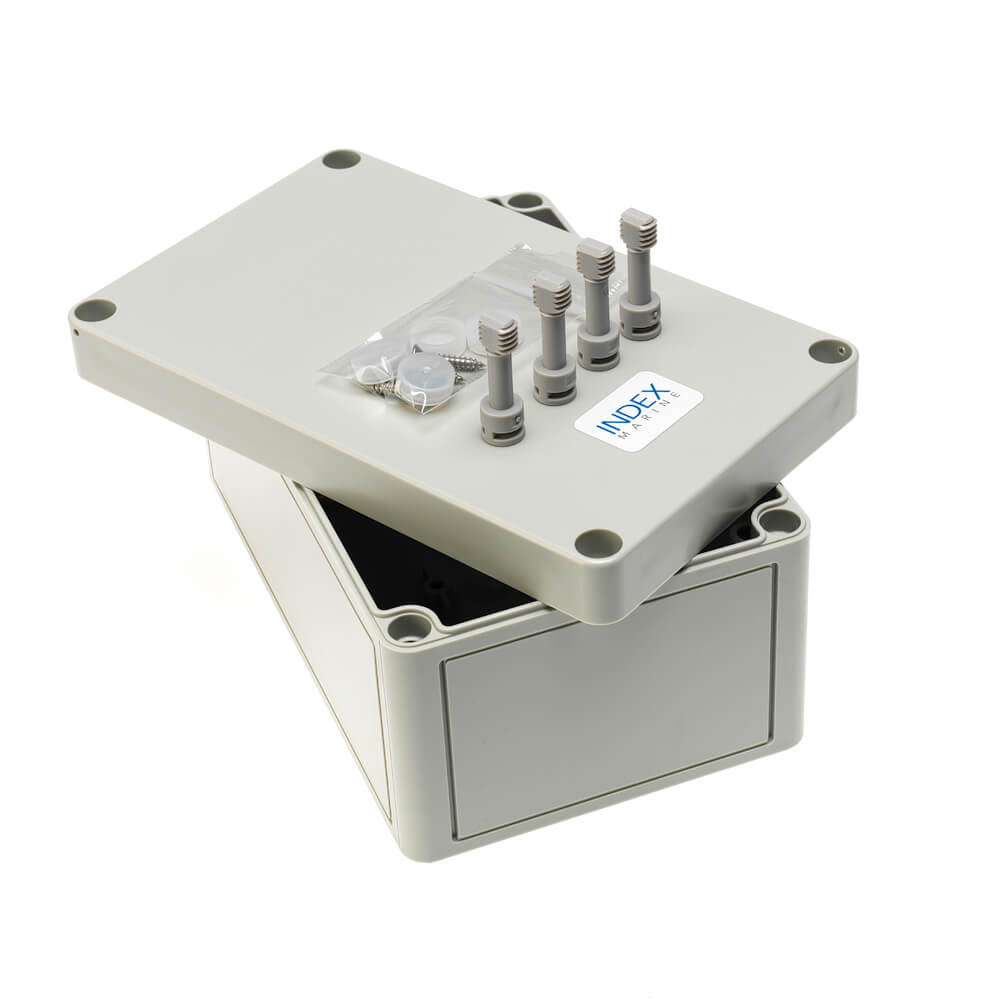

07-A5-WB7 - 180 x 110 x 90mm
07-A5-WB8 - 180 x 182 x 90mm
07-A5-WB9 - 254 x 180 x 90mm

Additional

Options110 x 110 x 66mm, 130 x 130 x 75mm, 130 x 130 x 75mm (with x6 CG1 M12 Cable Glands), 130 x 130 x 75mm (with x6 CG2 M20 Cable Glands), 130 x 94 x 57mm, 180 x 110 x 90mm, 180 x 182 x 90mm, 254 x 180 x 90mm, 65 x 65 x 57mm, 65 x 65 x 57mm (with x2 CG1 M12 Cable Glands), 65 x 65 x 57mm (with x2 CG2 M20 Cable Glands), 94 x 110 x 57mm, 94 x 110 x 57mm (with x4 CG1 M12 Cable Glands), 94 x 110 x 57mm (with x4 CG2 M20 Cable Glands), 94 x 65 x 57mm, 94 x 94 x 57mm (with x2 CG4 M25 Cable Glands Included)
BrandIndex
