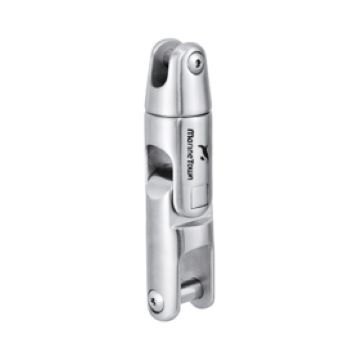

Anchor Connectors - Double Swivel
Similar to our single swivel anchor connectors, however, the double swivel version prevents your chain from twisting. 316 Stainless Steel. Available in two sizes
Description

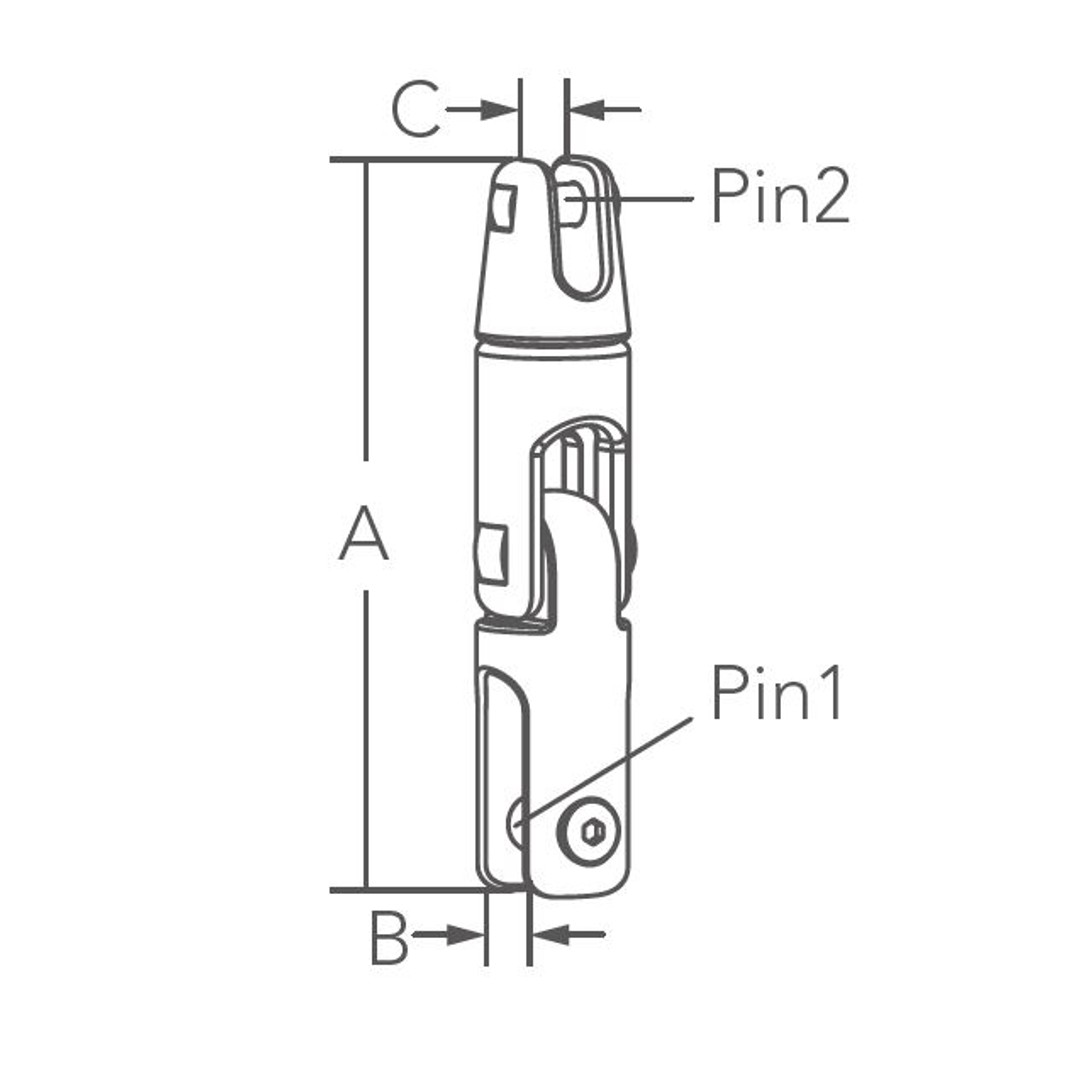

Part Number | A mm | B mm | C mm | Pin1 Ø mm | Pin2 Ø mm | S.W.L. |
| 70-NDH-AC-09-D | 135 | 15 | 9 | 10 | 7.5 | 850 kg |
| 70-NDH-AC-13-D | 158 | 22 | 13.5 | 12 | 10 | 1350 kg |
Additional
| Options | Double Swivel - 1350kg 158mm, Double Swivel - 850kg 135mm |
|---|---|
| Brand | Marine Town |
