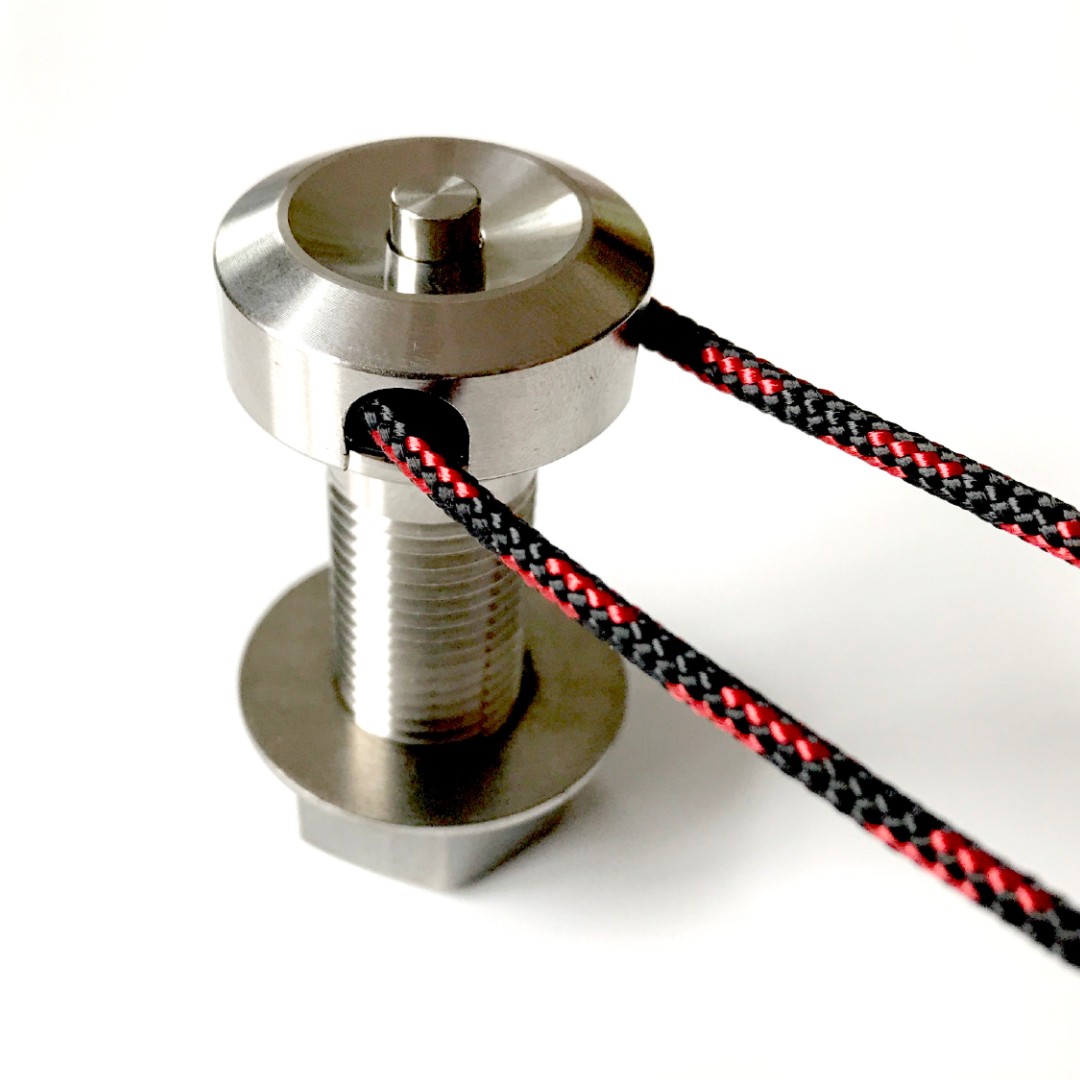

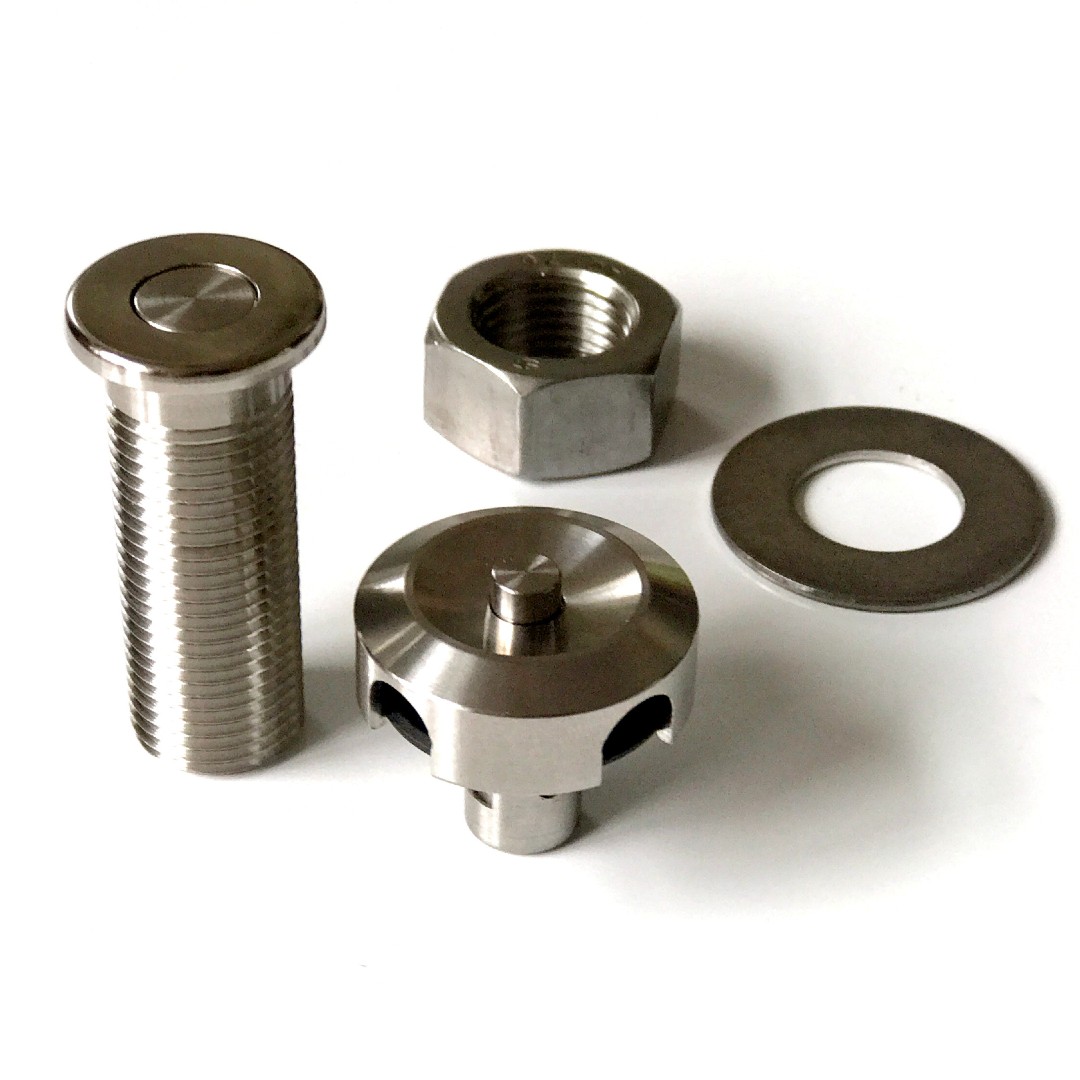

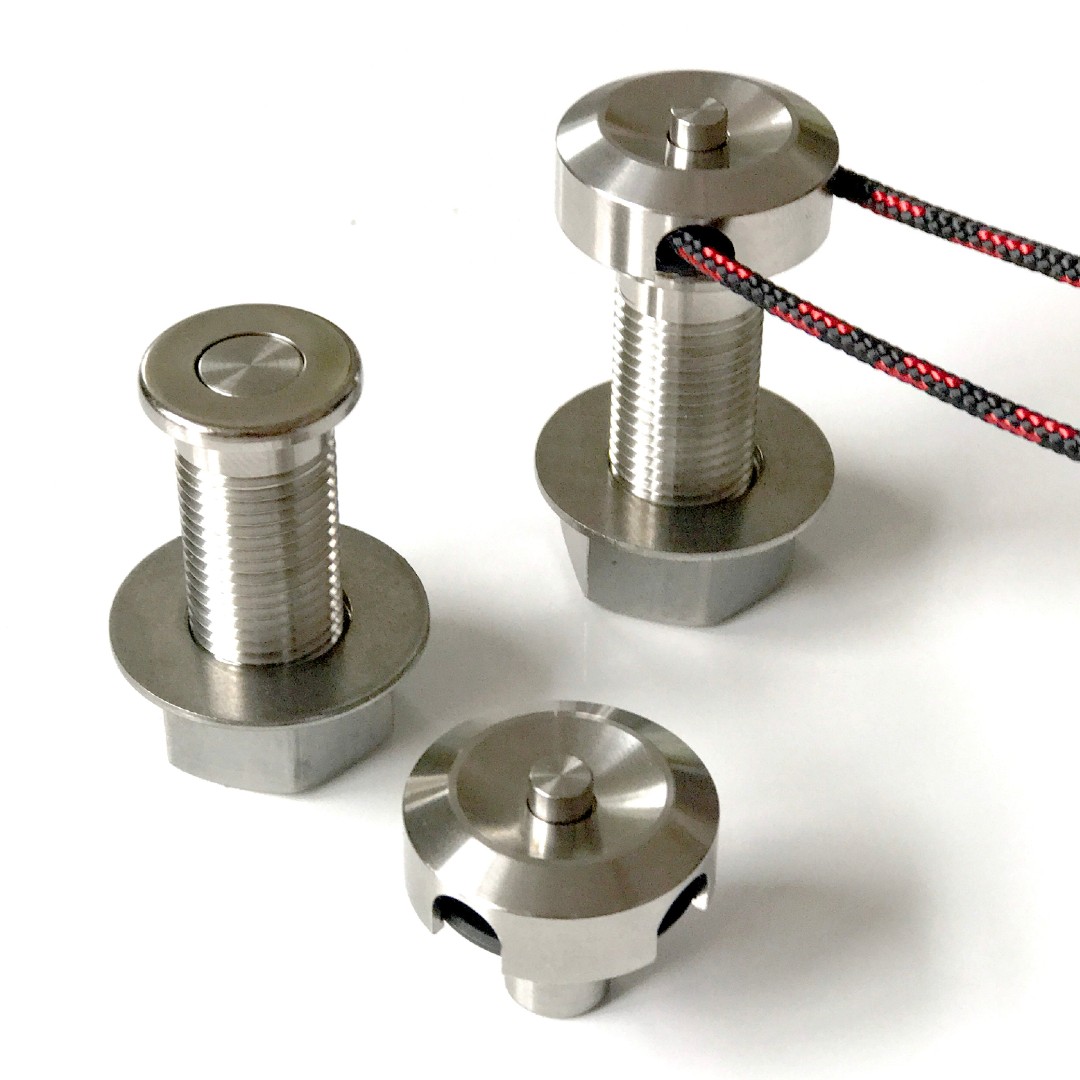

360 Degree Swivel Lock

Description

This 316 Stainless Steel unit has many functions. Ideal for fitting Fenders, Canopies, Lee Cloth, Boat Covers etc.

The low profile (waterproof) base unit offers a clean flush look and extremely smooth functionality. Simply press the button in the cap to fit or remove from the base unit.

This unit has a SWL of 100kg Vertical load and 400kg Horizontal Load.

Tested to failure point of 200kg Vertical and 800kg Horizontal offering a 2X margin of safety when used in the correct plain.

Dimensions;

Length Assembled - 59mm

Length of Base Unit only - 41mm

Cap Diameter - 29mm

Cap Height above deck - 12mm

Base Unit Head Diameter - 22mm

Base Unit Body Diameter - M16
