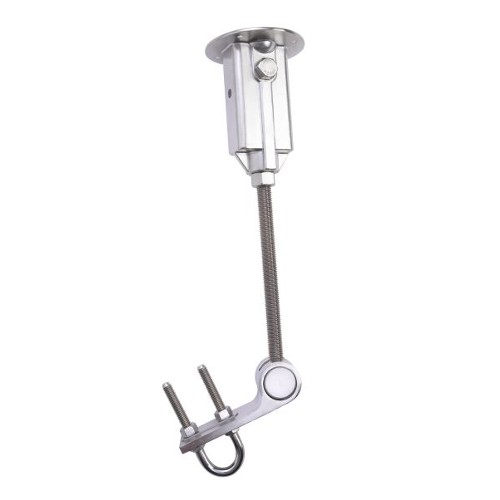

203 Series Lifting Eye Extra Large
All stainless steel parts; eye and base are 316, lifting hardware is 304. The sling is a solid casting for increased strength.
Description
3 1/4" diameter hole required. Fastens to deck with four 1/4" screws. When tested with grade 8 bolts, the bolts failed at 36,000 lbs. (16'329kg) and the lifting eye was still useable. These test results are good in the direction of the axis of the threaded rod shank only.
Parts may be purchased separately.
60-203-EA-XL - Extra Large 203 Lifting Eye with Hardware

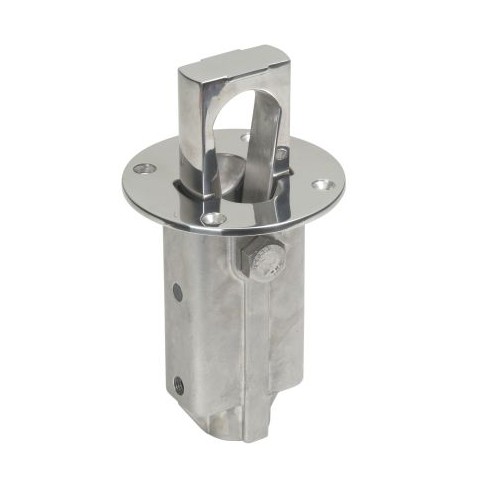

60-203-XL - Extra Large 203 Lifting Eye with Base
60-203-LER-XL - Connecting Rod
60-203S-XL - Large Sling Cast
60-203CBR - Cross Bar for Sling
60-203-BE - Bow Eye
Additional
| Options | Bow Eye for 203 Series Lifting Eye, Connecting Rod for Extra Large 203 Lifting Eye, Cross Bar with Sling for 203 Series Lifting Eye, Extra Large 203 Series Lifting Eye with Base, Extra Large 203 Series Lifting Eye with Hardware, Extra Large Sling Cast for 203 Series Lifting Eye |
|---|---|
| Brand | Accon |
